Pallet Rack Wire Mesh Decking Roll Forming Machine

Introduction

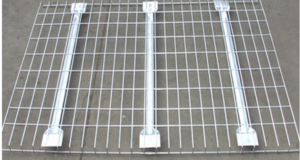

Pallet Rack Wire Mesh Decking Roll Forming Machine is used to produce wire mesh decks for pallet racking system, which is designed exclusively to provide users pallet rack shelving the ability to store items on shelves without having to use a pallet. Wire decks also provide increased stability and protection to the pallet rack over conventional pallet support beam alone.

Our pallet rack wire mesh decking roll forming machine is composed of decoiler, main forming machine, cutting device, control box and hydraulic system, which is fully automatically controlled by PLC control system, with the advantage of easy operation and fast efficiency.

Sanli Machinery is one of the leading rack roll forming machine manufacturer in China. This newly developed pallet rack wire mesh decking roll forming machine is designed and manufactured by market requirement, which improve production efficiency and save laobr cost a lot.

Technical Specification

• material thickness: 1-2mm
• roller stations: 14 stations
• roller material: Cr12
• shaft material: 40Cr
• main motor power: 15Kw
• cutting power: 7.5Kw
• PLC control system: Delta

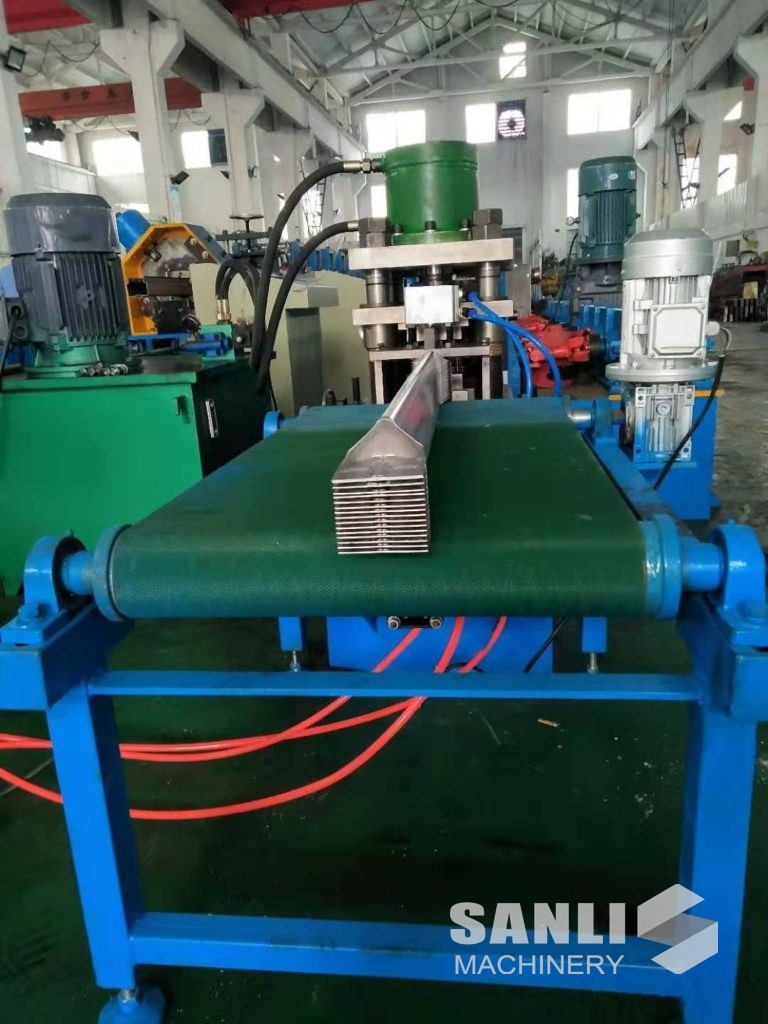

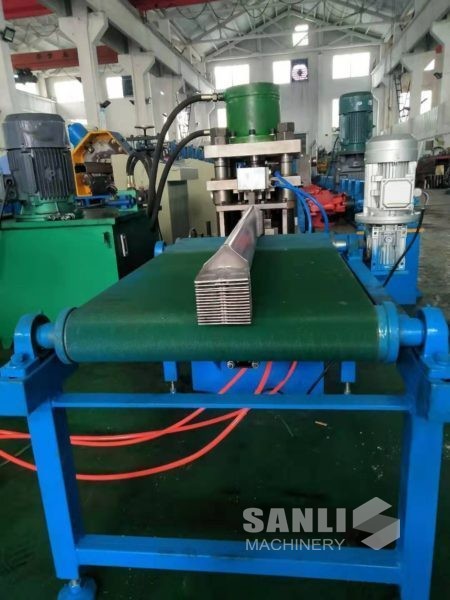

Machine Photo
