Rack Partition Beam Roll Forming Machine

Rack Partition Beam Roll Forming Machine

Introduction

Rack Partition Beam Roll Forming Machine is especially designed to produce the rack beam used for rack partition purpose.  The whole rack partition beam roll forming machine is composed of decoiler, leveler, hydraulic punch, main roll forming, hydraulic cutting, outer table, control box, etc. Fully automatically controlled by PLC control system, length cutting by encoder, this rack partition beam roll forming machine will increase your production efficiency, and save your labor cost a lot.

Working Process

Decoiler- Leveler- Hydraulic Punch- Main roll forming- Hydraulic Cutting- outer Table

• Main Technical Parameter
• Roller stations: 16 stations
• roller material: GCr15
• shaft material: 40Cr
• Main motor power: 18.5Kw
• PLC: Delta, Taiwan
• Encoder: Omron
• Power supply: 380V, 50Hz, 3Phase

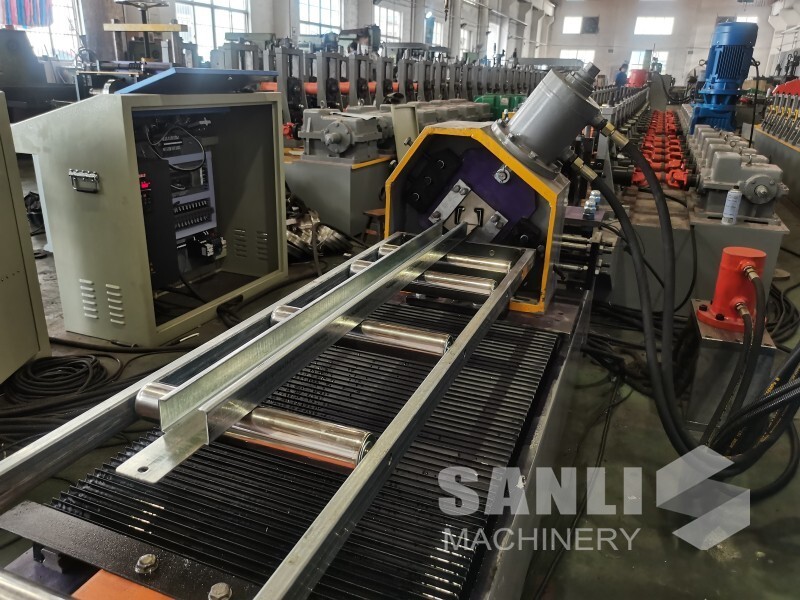

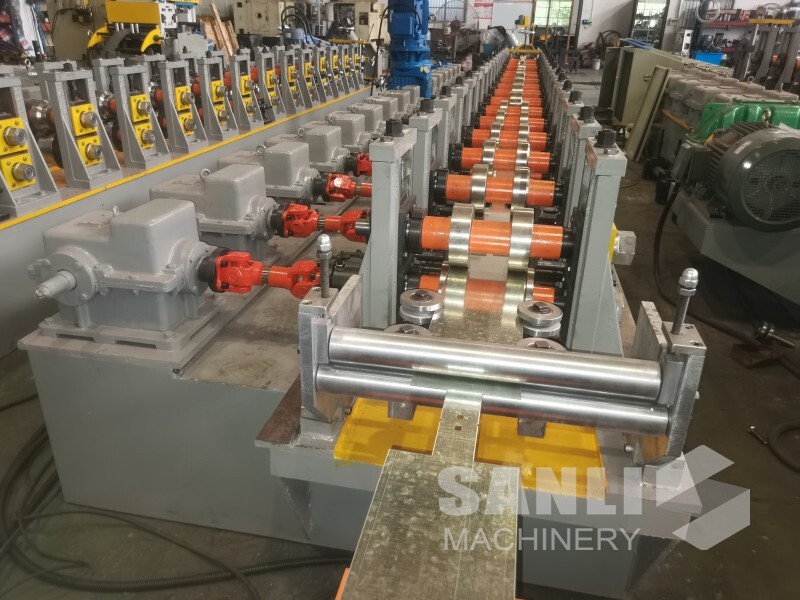

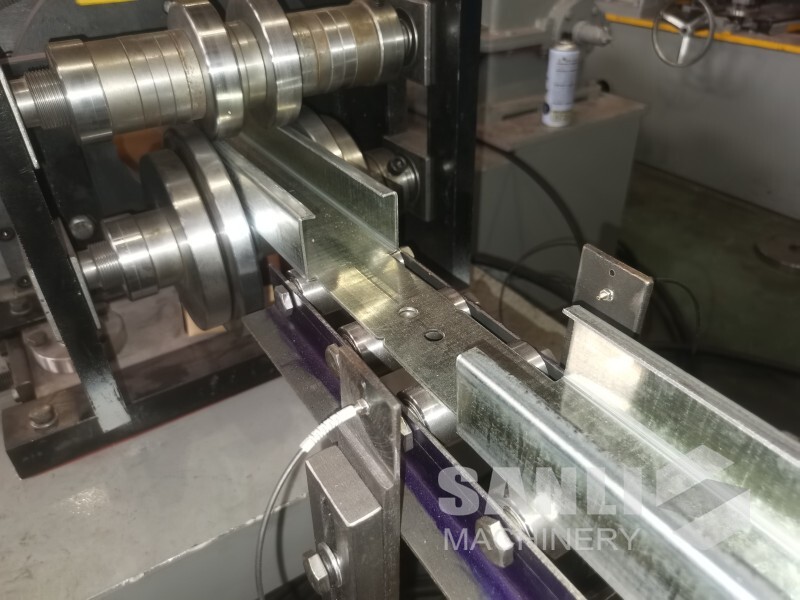

Photo of Rack Partition Beam Roll Forming Machine

rack-partition-beam-roll-forming-machine

rack partition beam roll forming machine

rack partition beam roll forming machine
