Rack Shelf Stiffener Roll Forming Machine

Introduction

Rack Shelf Stiffener Roll Forming Machine is designed to produce rack shelf stiffener( also called rack shelf suport bar). The machine is composed of decoiler, feeding, main forming machine, straightener, hydraulic cutting, control box, and hydrulic station. Controlled by PLC control system, the machine is fully automatic with the advantage of easy operation and fast efficiency.

We are professional manufacturer of roll forming machines focused on racking industry, for rack upright, rack beam, rack bracing, rack support bar, rack stiffener, etc. in China for the last 25 years. In China, about 80% of the racking factory use our machines.  If you require the rack machines, we can absulutely help you with our years’ rich experience.

Main Technical Parameter

• material thickness：0.6-1.5mm
• Roller stations: 12 stations
• roller material: Cr12
• shaft material: 40Cr
• main motor power: 7.5Kw
• Hydraulic power: 4Kw

Working Process

Decoiler- feeding- main forming- hydraulic cutting- Outer table

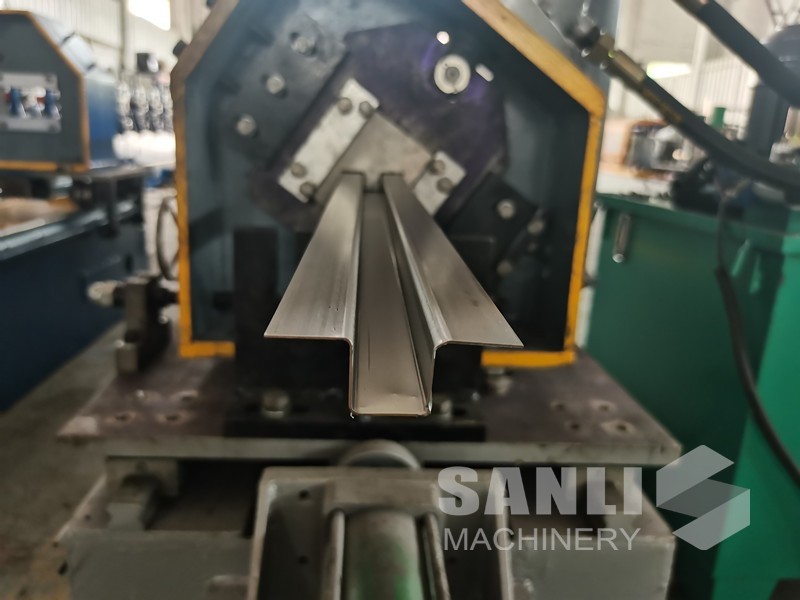

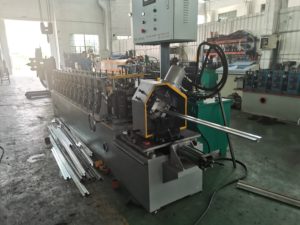

Machine Photo
