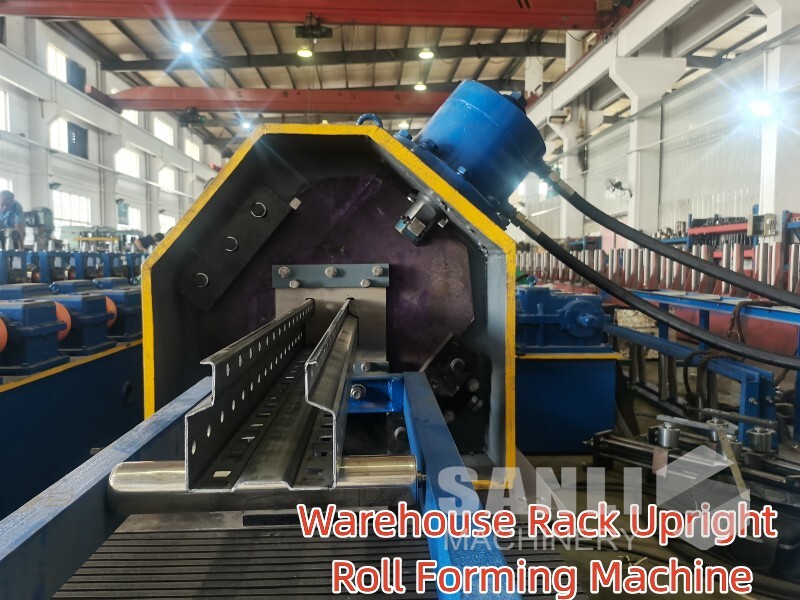

Warehouse Rack Upright Roll Forming Machine

Warehouse Rack Upright Roll Forming Machine

Introduction of Warehouse Rack Upright Roll Forming Machine

Warehouse Rack Upright Roll Forming Machine is specially designed for producing  warehouse rack upright  for Warehouse Pallet Racking System. The whole rack upright roll forming machine is composed of decoiler, leveler, press punch, main forming machine , hydraulic cutting, control box, outer table. The upright thickness and dimension sizes all can be adjustable and customized, as per customer requirement.

Introduction of Warehouse Rack Upright

Warehouse Rack Upright(also called  Upright Columns or Uprights) vary in size and design depend on the loading capacity and racking types. The uprights attach to compatible beams to create racks with multiple shelf levels.  Holes(Tear Drop Design) and slots are punched during producing so that the load beams can be mounted into the Upright Racks. The heavy Upright Racks thickness up to 3.0mm.

Sanli Machinery  can make different and most suitable design for your special rack upright requirement.

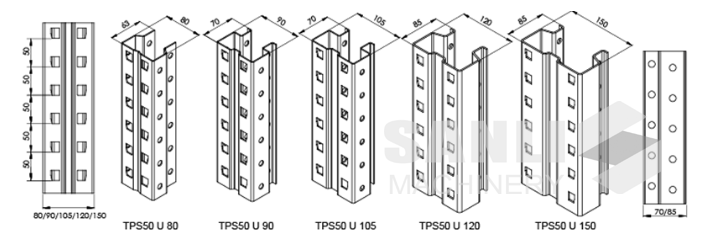

Rack Upright Drawing for reference:

rack upright drawing

Different dimension uprights can be designed to produce in one machine with holes and slot punched.

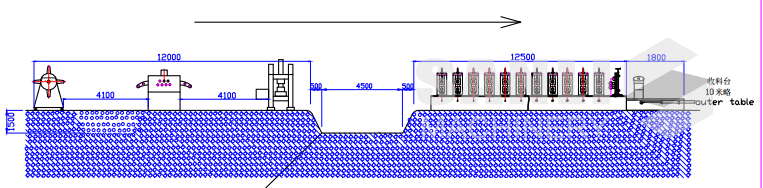

Machine Machine Layout of Rack Upright Roll Forming Machine

upright roll forming machine layout

Decoiling – Leveling- servo feeding- Punching – roll forming – hydraulic servo follow cutting – Out table

M/C of Upright Rack Roll Forming Machine

Main Specifications of Warehouse Rack Upright Roll Forming Machine

• Material thickness: 2.0mm
• Roller stations: 20 stations
• Roller material:Cr12, HRC58-62°
• Shaft diameter：Ф80mm，material
• Main motor power: 22Kw*2sets
• Hydraulic cutting power: 11 Kw
• Forming speed: 5-15m/min
• Drive way: drive by gearbox
• PLC Control box: Delta, Taiwan
• Encoder: Omron, Japan
• Inverter: Mitsubishi, Japan
• Power supply: 380V, 50Hz, 3Phase ( as per requirement)

Wuxi Sanli Machinery is specialized manufacturer of roll forming machines focused on racking industry, including rack upright roll forming machine, rack beam roll forming machine, rack bracing roll forming machine, rack shelf roll forming machine, rack shutter rail roll forming machine, etc,  for the last 30 years. In China, about 80% of the racking factories have our machines.

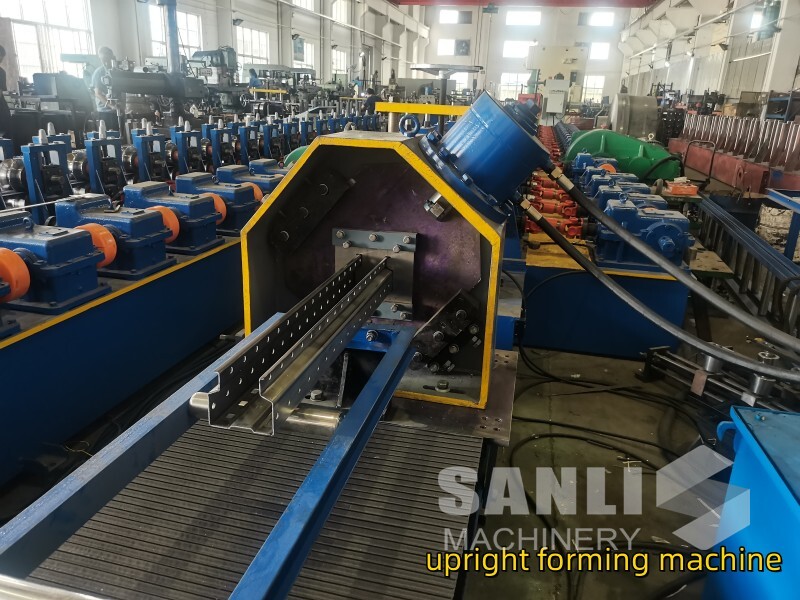

rack upright machine

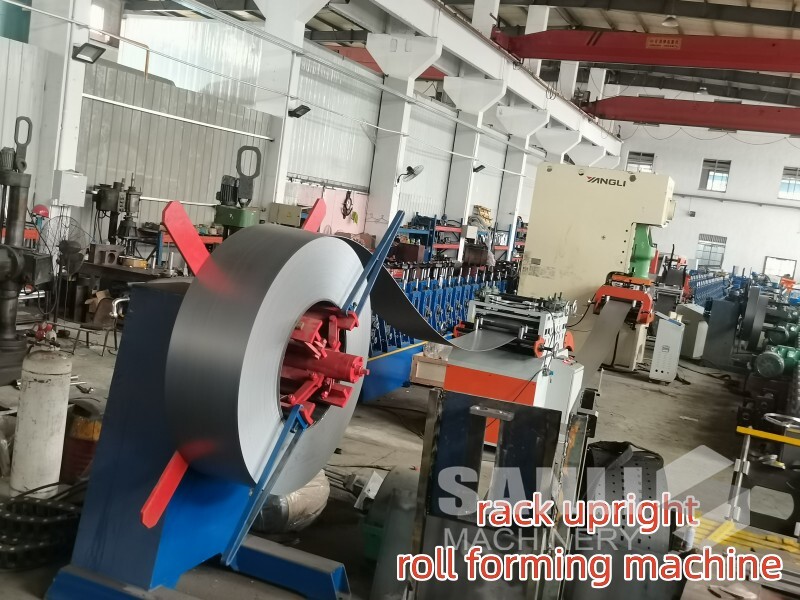

rack upright roll forming machine

warehouse rack upright roll forming machine
